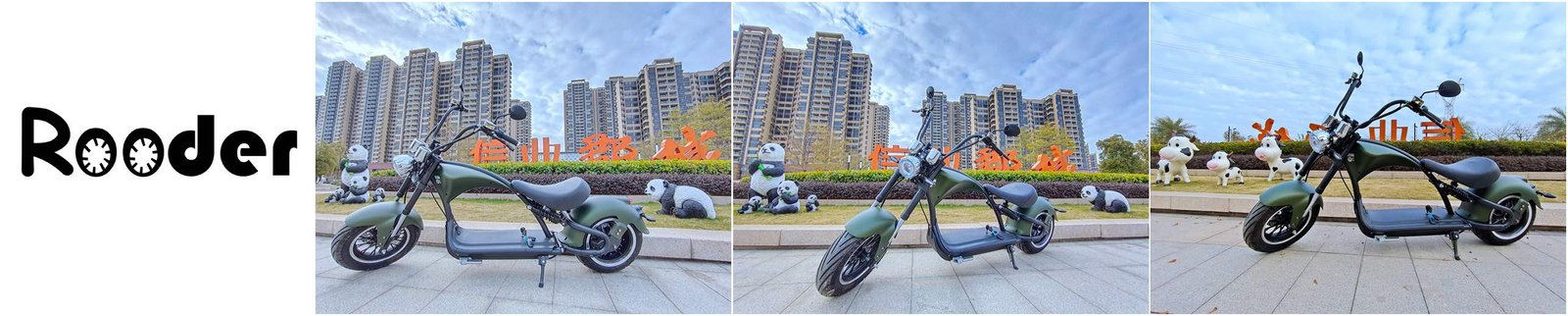

Citycoco arrow m1p is updated from the classic scooter Rooder Super M1
2000W electric Citycoco scooter for adults US and EU warehouse in stock
Rear QS or Yuma hub motor with 12″ tubeless tires
60v20ah li-ion battery of 40-60km for a single charge
Full suspension with update rear spring shock absorber
Updated front and rear lights, all LED now
Kickstand with electric power cut off
Specification:
| Model | Rooder Mangosteen m1p |
| Brand | Mangosteen / Rooder depends on stock |
| Frame material | Seamless iron alloy frame |
| Front Tyre size | 130/70-12 |
| Rear Tyre size | 215/40-12 |
| Tyre pressure | front 225kpa, rear 151kpa |
| Front fork | ronzlla mechanical Fork |
| Derailleur Shift System | NO |
| Brake type | Front and Rear Disc brake |
| Motor power | 60V, 2000W brushless motor |
| Max speed | 45km/h for Europe, 65km/h for USA |
| Grade-ability | 30 degrees |
| Max loading | 200 kg |
| Battery | 60V, 28Ah Lithium-ion removable battery |
| Range | 55-75 km |
| Charger | MGSD 67.2V, 5A |
| Charging time | 5-6 hours |
| Working temperature | -20~40℃ |
| Waterproof standard | IP54 |
| Display | LCD display |
| Front Shock Absorber | Hydraulic shock Fork |
| Rear Shock Absorber | Aluminum alloy spring shock absorber |
| Light system | LED headlight, brake light, turn lights, side reflector, |
| Saddle height | 63.5 cm |
| Suitable height | 160-210 cm |
| Alarm | alarm with 2 pieces remote |
| Product net weight | 81 kg |
| Gross weight | 92 kg |
| Certificates | CE, FCC, ROHS, EEC, COC, CNIT, UTAC, DOT, MSDS, UN38.3 |
| Product size | 210*91*130 cm （L*W*H) |
| Package size | 188*37.5*77 cm（L*W*H) |
| Package list | citycoco echopper m1p, mirrors, charger, tools, user manual |
Mangosteen M1P 2000W 28AH Electronics:
| Battery | 60V/28AH removable lithium battery, 1680WH (60v*28a=1680wh), 55-75km range depends on the road condition, driver’s weight, speed and so on. |
| Charger | 67.2V~5A MGSD quick charger, fully charged with 5-6 hours. (28ah/5a=5.6h) |
| Controller | 60V/55A Integrated controller which supports 65kmph+ speed |
| Display | Motor-style LCD with charge indicator, speedometer, odometer, trip odometer, throttle gear level, and so on. |
| Motor | 2000W Brushless DC Geared Motor with 124 NM max torque, up to 65km/h (max speed). Motor brand: QS motor or YUMA motor. |
| Lights | Front: Oversized headlight with turn light Rear: Integrated taillight on the fender with brake light, and direction indicator. |
| Throttle | Three levels of gear throttle in the default. 45kmph max for European market and 40mph(65kmph) for US market. Speed can switch betwen 45/65kmph by changing the speed limit setting. |
| Kickstand | Electric cut off when getting on the kickstand |
Citycoco M1P Components:
| Tires | 12″ straight grain vacuum tubeless tires |
| Fenders | Made of ABS material by MGSD. |
| Brakes | Front and Rear Hydraulic disc brakes |
| Frame | Seamless iron alloy frame |
| Front Suspension | Hydraulic shock Fork |
| Rear Suspension | Spring steel shock |
| Seat | double seat in leather |
| Footrest | Foldable |
Mangosteen e chopper m1p Geometry:
| Seat Height | 63.5cm |
| Handlebar Height | 77cm |
| Total Length | 212cm |
| Handlebar Width | 85cm |
| Rear Suspension Length | 24.38cm |
| Footrest Size | 12.44cm * 14.47cm |
| Kickstand Length | 17cm |
| Controller Size | 17.2cm* 9.4cm |
| Front Brake Hose | 1100mm |
| Rear Brake Hose | 2250mm |
| Rear Registration Plate Size | 14.45cm * 12.5cm |
| Hydraulic Reservoir | 24ml |
| Gradeability | 30° |
| Tire Pressure | Front: 225 kPa, Rear: 151 kPa |
| Net Weight | 76kg |
| Gross Weight | 100kg |
| Maxload | 200kg |
| Recommend Rider Height | Over 140cm |
Rooder Technology Co., Ltd.,Founded in the year of 2018, situated in YFHC Sicence and Technology Industries Park, is a high-tech enterprise engaged in the research and development, production, sale, engineering installation and after-sales services of citycoco chopper and electric scooter.
Rooder can produce and provide various escooters. Our company has a workshop which is more than 2000 square meters and two modernized production lines which have the highest working speed in the world.
We have over 10 years’ production experience, skilled workers and excellent R&D teams, execute strict quality assurance system, and provide consummate after-sales services.
